BORN TO OVERTAKE
ROOTED IN JDM. BUILT FOR PERFORMANCE.
Driven by precision. Defined by speed. JSP delivers high-performance turbocharging solutions for the tuning culture, pushing power beyond limits.
Swipe

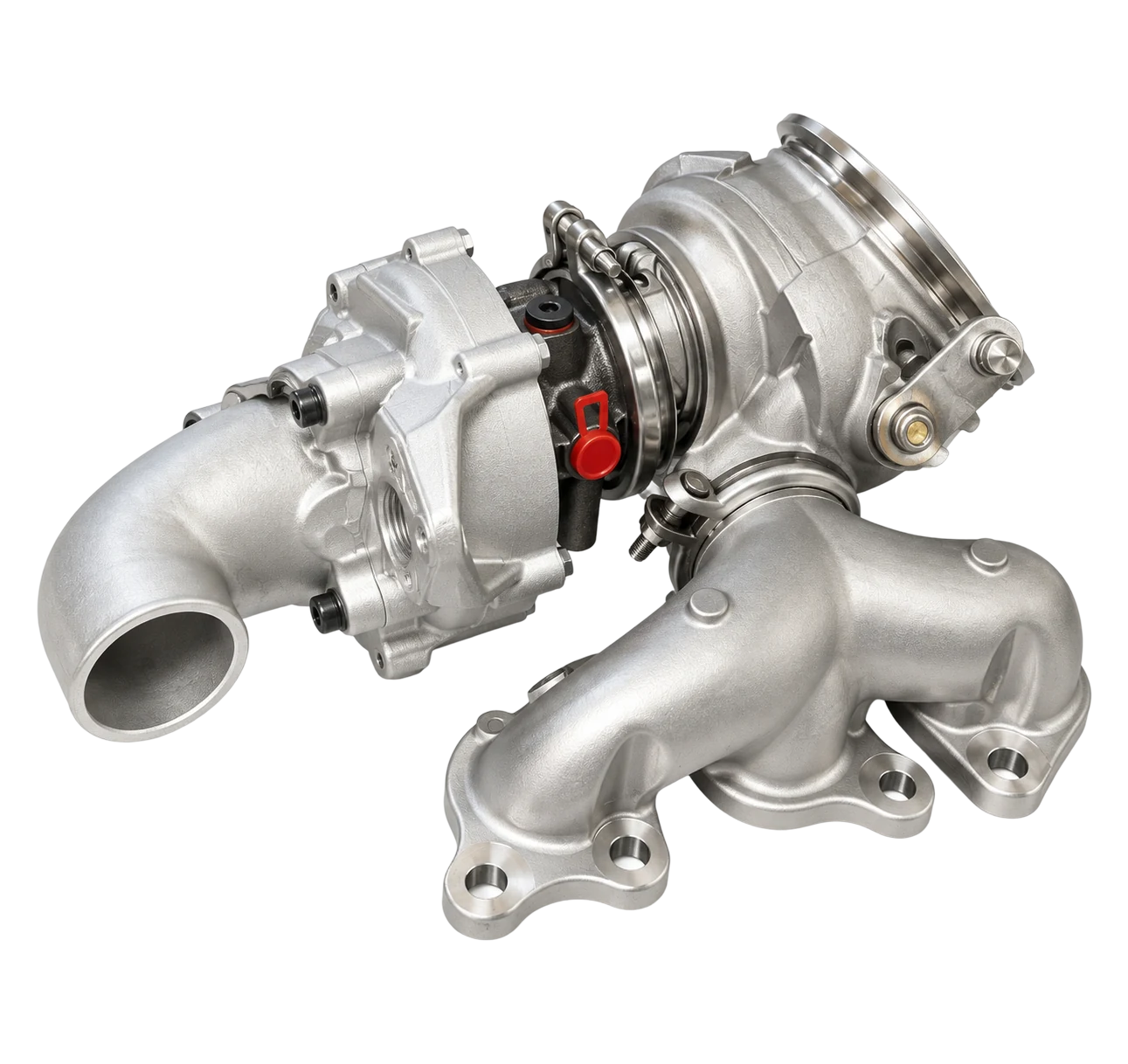

TURBOCHARGER EXPLODED VIEW

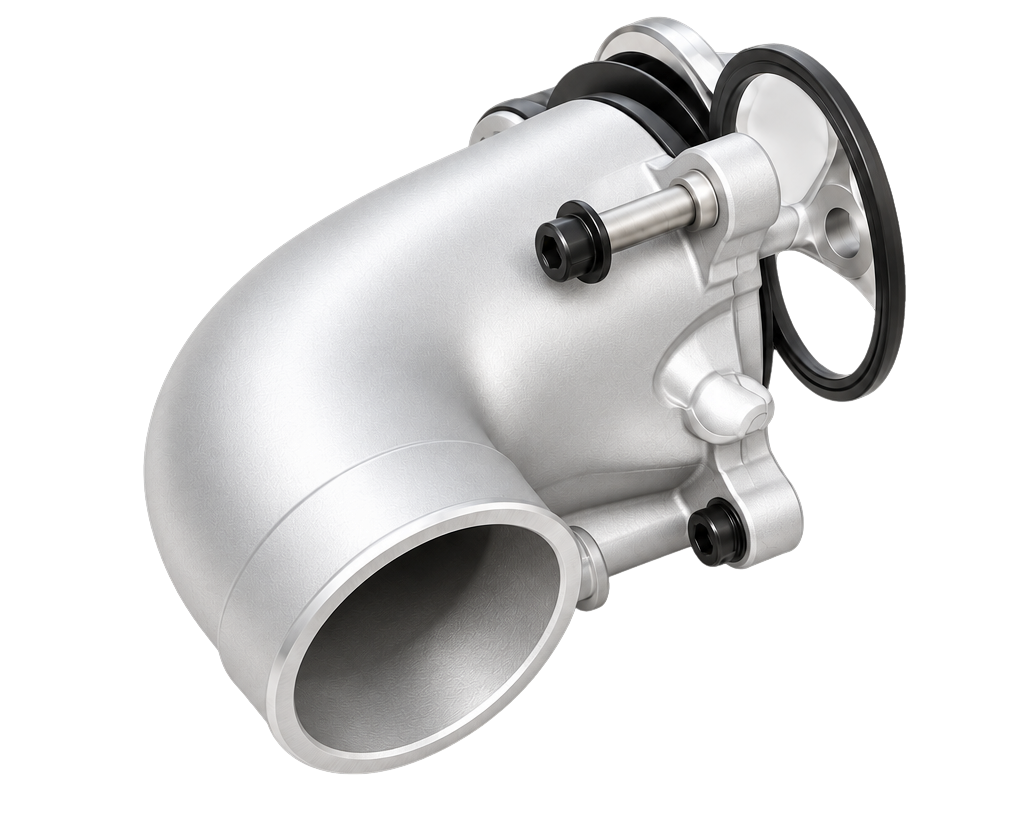

Compressor Inlet Pipe
Compressor inlet duct, guiding ambient air steadily into the impeller.

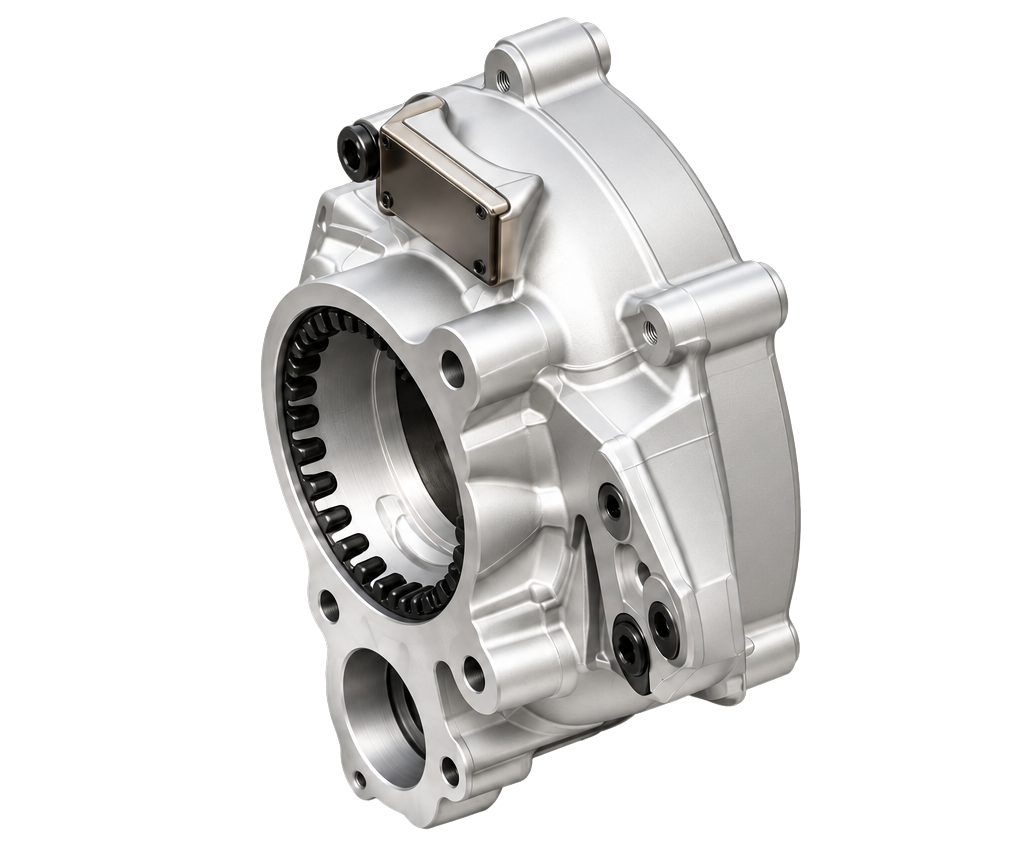

Compressor Housing
Compressor housing diffuses compressed air (velocity down, pressure up) and directs it to the engine intake.
Compressor Wheel
Spins with the turbine wheel, centrifugally compressing air to boost density, pressure, and cylinder charging.

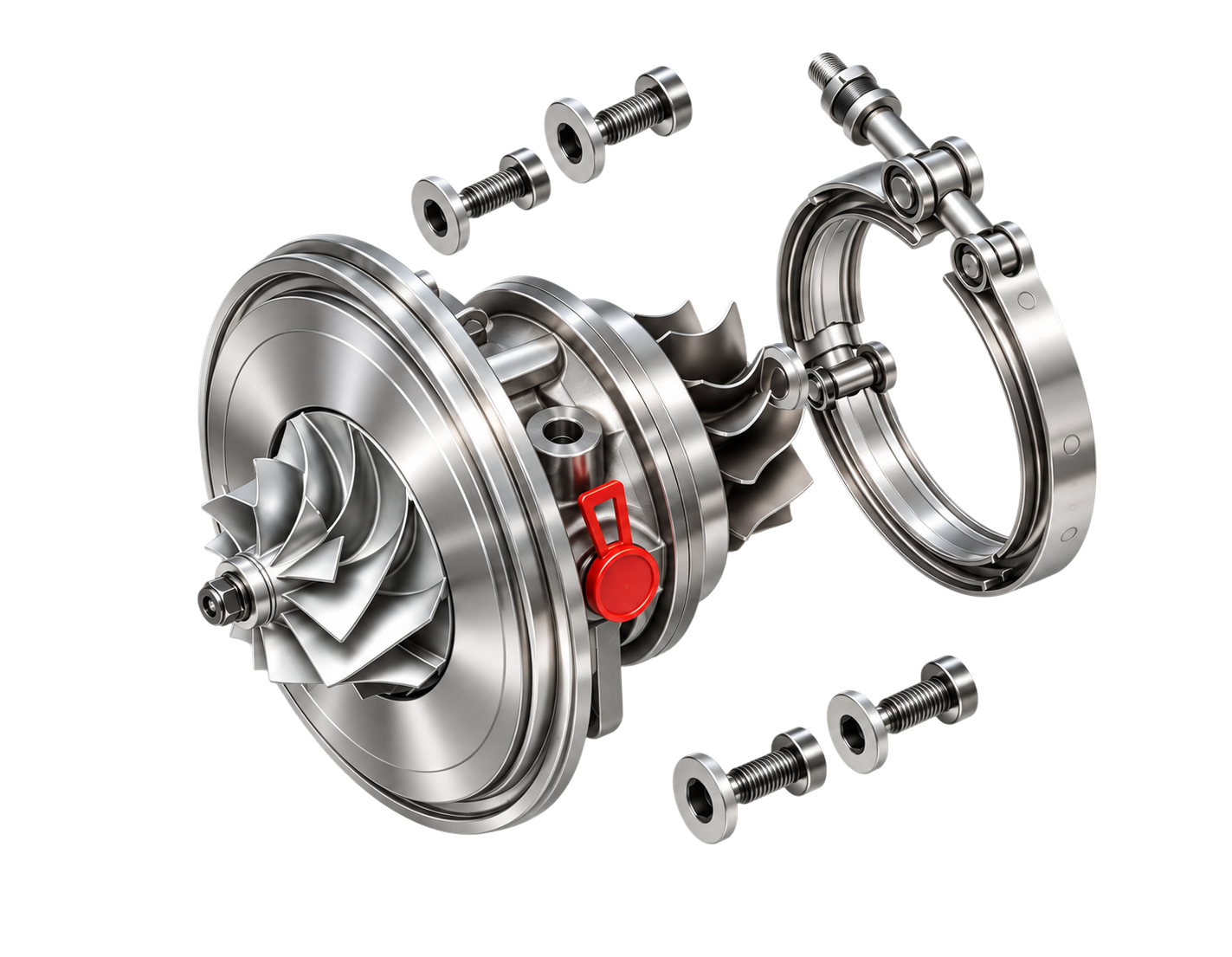

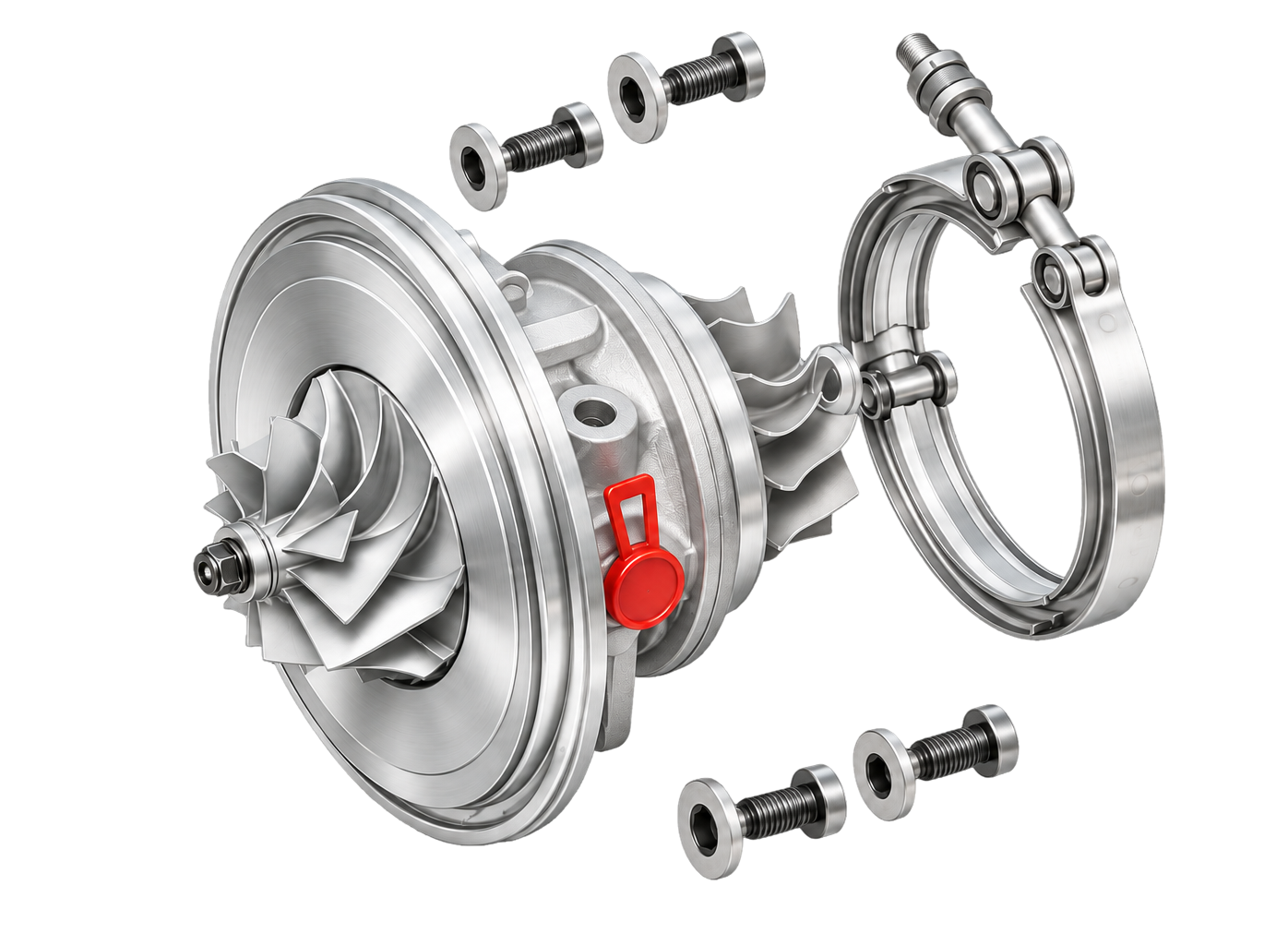

Center Housing
Core bearing housing with oil and coolant passages, supporting the rotor shaft for stable operation.
Turbine Wheel
Spun by engine exhaust, converting its heat and pressure into mechanical energy — the turbocharger's power output.

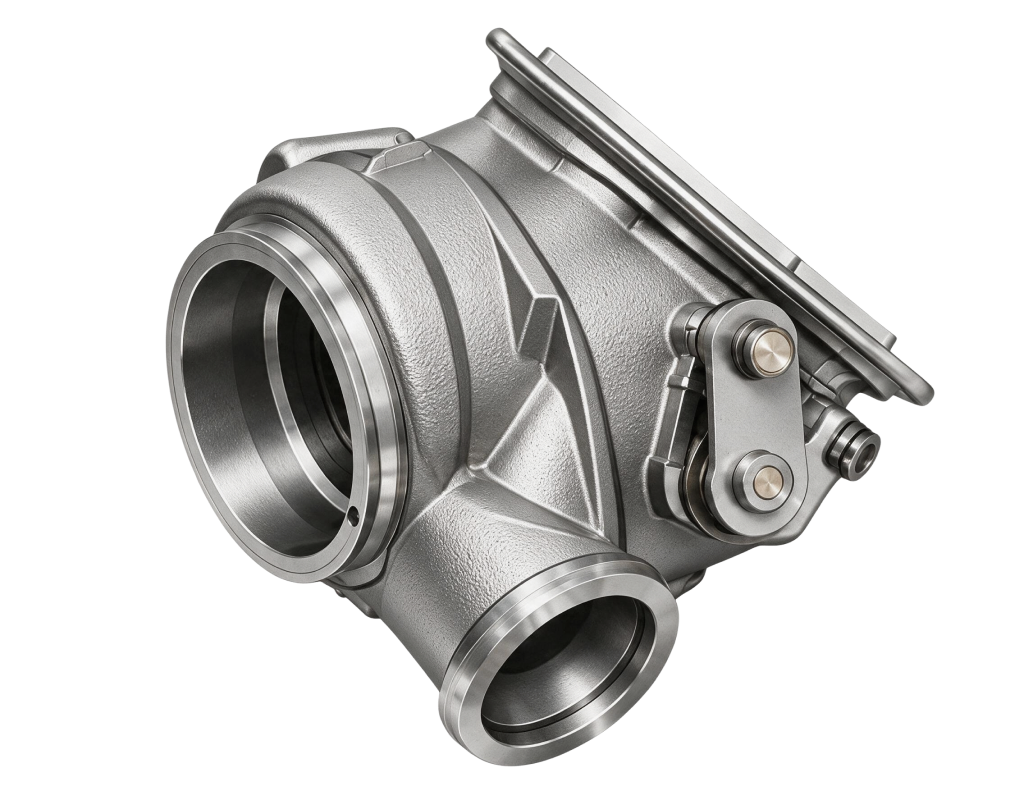

Turbine Housing
Feeds hot exhaust to the turbine wheel; expansion spins it — the turbocharger's power input.

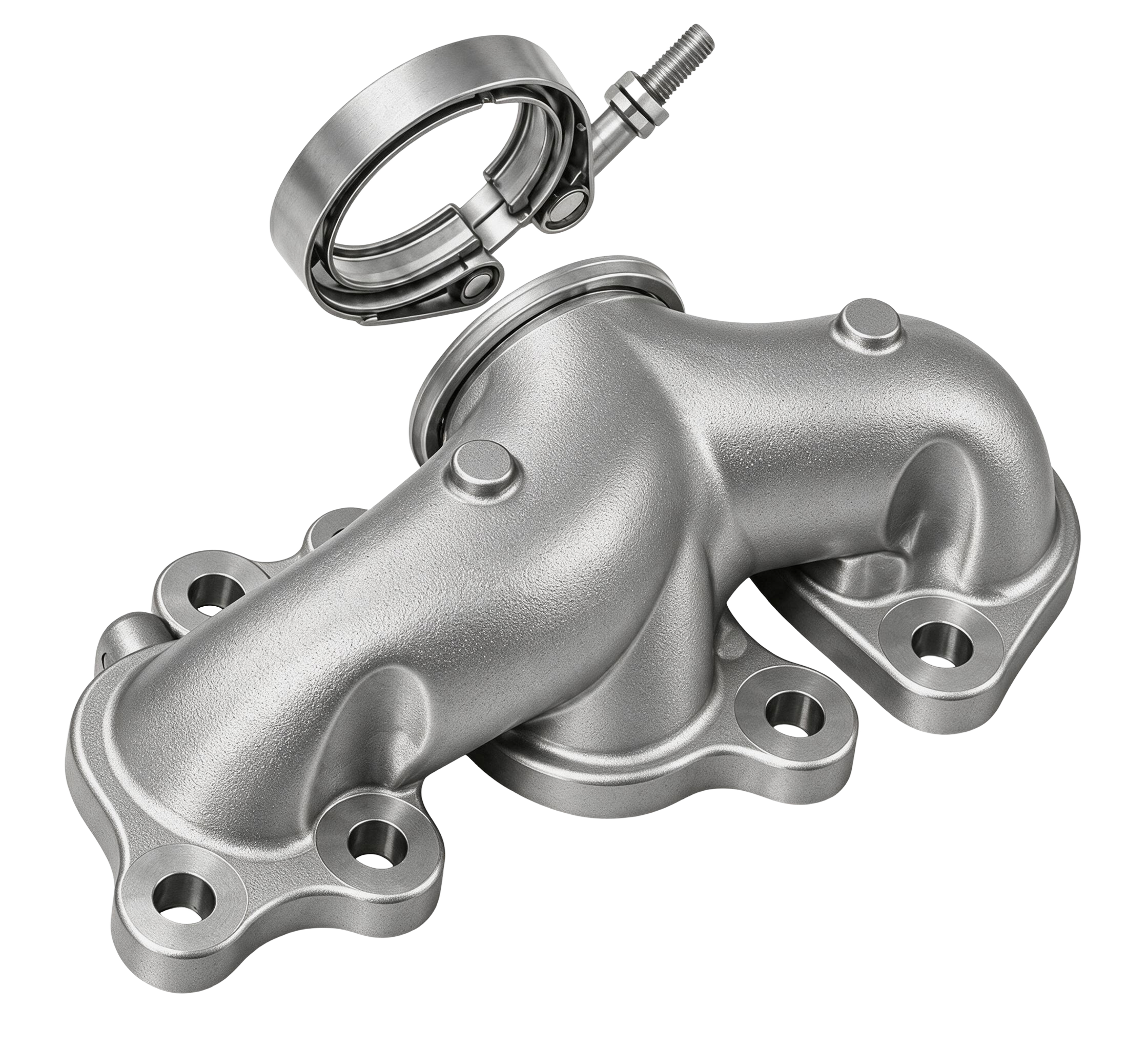

Exhaust Manifold
Routes hot exhaust into the turbine housing as the turbine wheel's driving medium.
